MIM PARTS ONE-STOP SERVICE

EMITECH CNC offer a wide range of MIM Parts with Turkey solutions

What is MIM (Metal Injection Molding)Parts?

In MIM, plastic injection molding meets powdered metallurgy to produce precise, complex parts in large quantities, even with metals that cannot be die cast, like stainless steel and low alloy steels.
Metal injection molding is a metalworking process in which finely-powdered metal mixed with a binder material. Compared to casting and forging, MIM usually provides better results for small sizes, complex shapes, and high-volume demand. Molds are often made of steel, and they can contain 3D geometry and cavities to produce high-volume and complex parts.While MIM parts don’t generally have a low raw cost, the material is price, and that goes for the molds, too. However, there are some definite advantages to using MIM parts or Micro MIM. Since they can be heat treated (since they’re already tough when you make them), you won’t need to finish them – no extra work needed. And since there isn’t any machine-smoothing of the surfaces needed, these parts can be made in shapes that would either be impossible or too expensive to achieve with machining.

BEST METAL INECTION MOLDING PARTS PROVIDER FROM CHINA

Emitech CNC has follow the development of the Metal Injection Molding Technology Development and provide the MIM Parts for many industriaies.We could provide the complete turnkey solutions.

MIM parts assemble

EMITECH CNC TECHNOLOGY-20 YEARS

CUSTOMMIM PARTS

EMITECH CNC PROVIDE THE MIM PARTS SOLUTION FOR THE MANY INDUSTRIAL

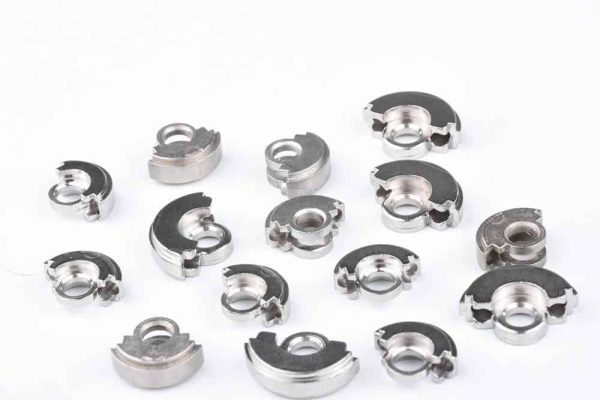

Precision casting factory metal injection molding security

QUICK-PLUG

Emitech CNC could choose the SS304 and SUS316 to produce MIM Parts

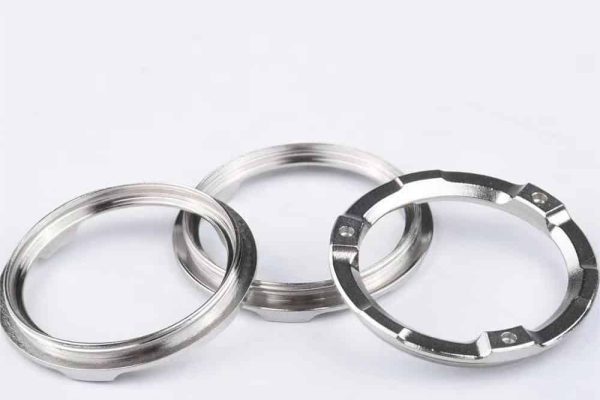

High Quality Police Security Self Defense Led

LOCK RING

Emitech CNC choose the 17-4PH to produce the MIM Parts.

Professional-customized-MIM-powder-metallurgy-stainless-steel

MIM PARTS

EMITECH has many material application,such as Fe2Ni,4J29 3C and etc.

MIM MATERIAL SOLUTION

EMITECH CNC-20 YEARS

How to Produce(Metal Injection Molding) MIM Parts?

The metal injection molding process (MIM) is a method of metalworking where fine metal powder is mixed with binder material to create feedstock, which is then molded and solidified by injection molding. Known as Green parts, these parts are a combination of metal powder and binder with a geometry structure. Debinding operations are applied after molding to remove binder materials. MIM parts after debinding are called brown parts. The sintering process densifies metal powder by increasing the temperature in furnaces. This results in a sintered part. All operations you can perform on forging or casting parts will be applicable to sintered parts after they are manufactured. This includes welding, soldering, blueing, hardening, tempering, polishing, filing, and grinding.

High Pressure Molding

Emitech CNC could provide all kinds of different sizes, and shapes parts with different alloys.All of the molds are design by ourselves.

Sintering Device

Emitech cnc could provide the roughly 6,000,000 pcs MIM Parts Per month.Our Sintering machines could provide the high-density,high cost metal parts.

What’s The Advantage Of The MIM(Metal Injection Molding) Part?

Injection molding (MIM) offers several advantages over traditional metal production techniques. Having developed MIM technology for over 30 years, EMITECH CNC is able to Provide MIM parts with high volumes, a variety of alloys, and a wide range of sizes and complex structures at good price. Here are some of the advantages of MIM

Tolerence is very high

Good Surface

It’s suitable for the complex Part

Design Complexity

Friendly for the envoirement

Fast Leading Time

What’s Material is suitable for the MIM(Metal Injection Molding)?

Metal Injection Molding offers a range of advanced, intricate components without the need for additional machining. With superior density and properties comparable to other fabrication techniques, MIM is incredibly versatile. It can be utilized with a variety of materials, and its use of metal powder with distinct chemical compositions, sizes and shapes gives it an edge in terms of customization.

steel, stainless steel, tool steel, low alloy steel, iron-nickel alloy, special ferrous alloys like Invar and Kovar.
316,304,420,440C,17-4PH(HRC25-30),17-4PH(35-40),P.A.N.A.C.E.A

tungsten-copper, tungsten heavy alloys.
nickel, nickel-base superalloys
molybdenum, molybdenum-copper
cobalt-chromium, cemented carbides(WC-Co), cermet(Fe-TiC).
aluminum, precious metal, copper and copper alloys, cobalt-based alloys, magnetic alloys (soft and hard), shape-memory alloys.
4605,Fe02Ni,Fe04Ni,Fe08Ni,Fe03Si,Fe50Ni,Fe50Co
Copper,Ti-6AL-4V,Nickel Alloy,ASTM F15,ASTM F75,ASTM F1537
Due to the fact that most alloys were developed and created in casting technology, it cannot be ignored that long-term annealing in sintering processes will degrade alloy properties.Because of its corrosion resistance and strength properties, 316L alloy composition (Fe-19Cr-9NI-2Mo) is widely used. The additional chromium in the alloy composition makes sintering a lot easier, so this alloy will provide superior properties using this alternative metal manufacturing process.

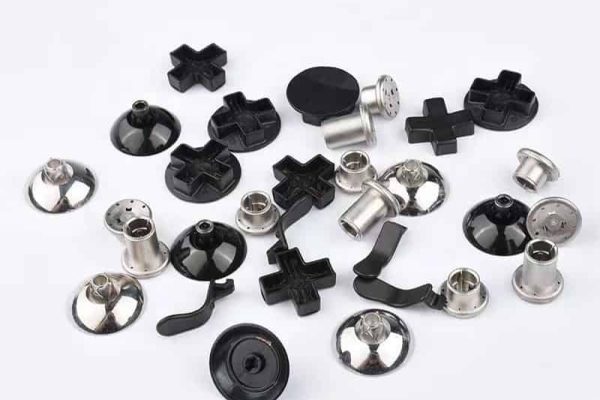

EMITECH CUSTOM MIM Parts

These parts are suitable for a variety of industries due to their complex structure and perfect appearance. They have perfect tolerances and have a minimum wall thickness of 0.10 mm.
Our MIM parts are becoming more cost-effective than traditional investment casting, such as orthodontic devices made from stainless steel.
The EMItech CNC company provides a wide variety of customized MIM parts for a variety of industrial applications, including: micro gears, drones, smart wearable devices, pepper spray, and machinery components.

Why Choice Emitech MIM Parts?

Good Technicial Engieer-Design and Optimize the MIM.
With collapsible cores or sliders, we can design MIM parts that have undercuts that function in the mold. While undercuts are difficult or impossible with other metalworking technologies, they can certainly be done with metal injection molding, whether externally or internally. For professional MIM design advice when designing undercuts, we strongly recommend contacting our engineering team. Emitech engineer has ability to reduce the cost and shorter the leading time and ensuance the quality.
There is no doubt that Emitech is able to satisfy any custom material requirement at the most cost-effective price.

MIM Parts

F.A.Q

Metal Injection Molding (MIM) has emerged as a groundbreaking manufacturing process, combining the best of plastic injection molding and powder metallurgy techniques. With its ability to produce complex, small to medium-sized metal components, MIM has revolutionized various industries by offering a cost-effective solution with exceptional design flexibility.

Forged parts and MIM (Metal Injection Molding) parts are manufactured through distinct processes, resulting in notable differences in their properties and manufacturing capabilities:

Forged Parts:
– Manufacturing Process: Forging involves the shaping of metal by applying compressive forces through a hammering or pressing action. The metal is heated to a high temperature and then shaped using force. This process creates strong, solid, and dense components.
– Material Characteristics: Forged parts are typically made from solid blocks or billets of metal. The heating and shaping process aligns the grain structure, resulting in superior mechanical properties, including high strength, toughness, and fatigue resistance.
– Design Flexibility: Forging can accommodate a range of part sizes and shapes, but it may have limitations in producing intricate geometries or fine details compared to other methods like MIM.
– Cost: Forging can be cost-effective for large volume production, especially for simpler shapes. However, it may involve higher costs for complex geometries or smaller volumes due to the need for specialized tooling and equipment.

MIM Parts:
– Manufacturing Process: MIM uses a combination of plastic injection molding and powder metallurgy techniques. Fine metal powders are mixed with a thermoplastic binder to create a feedstock, which is then injected into molds and shaped. After debinding and sintering, the final metal part is obtained, offering high precision and complex geometries.
– Material Characteristics: MIM parts can be produced with a wide range of metal alloys, providing flexibility in material selection. The sintering process results in fully dense components with excellent strength, good dimensional accuracy, and desirable properties tailored to specific applications.
– Design Flexibility: MIM excels in producing intricate shapes, fine details, and complex geometries that may be challenging for forging or other traditional manufacturing methods. It offers greater design flexibility and can achieve near-net shape manufacturing, reducing the need for secondary operations.
– Cost: MIM can be cost-effective for complex shapes and smaller volumes, as it minimizes material waste and allows for high-volume production without extensive machining. However, tooling costs and material selection may influence the overall cost of MIM parts.

In summary, forged parts are strong, solid, and suitable for simpler shapes and larger volumes, while MIM parts offer design flexibility, intricate geometries, and good material properties for smaller volumes and complex components. The choice between forging and MIM depends on factors such as part requirements, volume, complexity, and cost considerations.

MIM stands for Metal Injection Molding. It is a manufacturing process that combines the techniques of plastic injection molding and powder metallurgy to produce complex metal parts. In MIM, fine metal powders are mixed with a thermoplastic binder material to form a feedstock. This feedstock is then injected into a mold cavity, where it solidifies and takes the shape of the desired part. Afterward, the molded part undergoes a debinding process to remove the binder, followed by a sintering process to densify the metal particles and give the final part its desired mechanical properties.

MIM materials can be made from a wide range of metals, including stainless steel, low-alloy steels, tool steels, copper alloys, and titanium alloys. The process allows for the creation of intricate shapes with high precision and excellent surface finish, making it suitable for applications in various industries such as automotive, medical, electronics, telecommunications, and consumer goods.

The advantages of using MIM materials include cost-effectiveness for mass production, design flexibility, reduced machining requirements, and the ability to create complex geometries that would typically be challenging or impossible using conventional metalworking methods. Additionally, MIM allows for the incorporation of multiple features into a single part, eliminating the need for assembly processes and reducing overall production time.

MIM (Metal Injection Molding) parts are made through a multi-step process that combines techniques from plastic injection molding and powder metallurgy. Here’s a step-by-step overview of how MIM parts are produced:

1. Formulation: The first step involves formulating a feedstock. Fine metal powders, typically ranging from 5 to 20 micrometers in size, are mixed with a thermoplastic binder material. The binder holds the metal particles together and provides the necessary flow properties for injection molding.

2. Feedstock Preparation: The mixed metal powder and binder formulation are then compounded and pelletized to create a homogeneous feedstock. This feedstock is usually in the form of small pellets or granules.

3. Injection Molding: The prepared feedstock is loaded into an injection molding machine. The machine heats the feedstock, converting it into a molten state. The molten feedstock is then injected into a mold cavity under high pressure. The mold is designed to have cavities in the desired shape of the part being produced.

4. Cooling and Solidification: After injection, the molten feedstock rapidly cools and solidifies inside the mold cavity, taking the shape of the part. This cooling process may involve the use of water or other cooling mediums to accelerate solidification. The cooling time is optimized to ensure proper part formation and minimize cycle times.

5. Debinding: Once the part has solidified, it is removed from the mold, still containing a significant amount of the thermoplastic binder. The part then goes through a debinding process, which involves subjecting it to heat in a controlled environment. This heat causes the binder to evaporate or burn off, leaving behind a porous structure resembling the final part.

6. Sintering: The debound part is then subjected to a sintering process. Sintering is performed in a furnace at a temperature below the melting point of the metal, where the remaining metal particles fuse together, densify, and shrink to their final dimensions. This process eliminates porosity, increases density, and imparts the desired mechanical properties to the part.

7. Post-Processing: After sintering, the MIM parts may undergo additional finishing processes, such as heat treatment, surface treatments, machining, or coating, to achieve the desired specifications, surface finish, and dimensional accuracy.

8. Quality Assurance: Throughout the entire MIM process, quality control is essential. Various inspections and tests are carried out to ensure that the parts meet the required specifications and quality standards, including dimensional checks, mechanical property testing, and visual inspections.

By following these steps, MIM manufacturers can produce complex and high-precision metal parts with excellent surface finish and mechanical properties. The process is particularly suitable for mass production of small to medium-sized parts with intricate geometries.

The choice between machined or forged parts depends on several factors, including the specific application, desired properties of the part, production volume, and cost considerations. Both machining and forging have their advantages and considerations.

Machining involves removing material from a solid block or bar of metal to create the desired shape. It offers high precision, tight tolerances, and excellent surface finishes. Machined parts are often used when very specific dimensions or intricate features are required. Machining also allows for flexibility in design changes and works well for low to medium production volumes or prototyping.

Forging, on the other hand, is a process that involves shaping metal by applying compressive forces through the use of a hammer, press, or die. It produces parts with excellent strength, durability, and structural integrity. Forged parts typically exhibit superior mechanical properties, such as improved fatigue resistance and impact strength, compared to machined parts. Forging is commonly used in applications that require high-strength components, such as automotive, aerospace, and heavy machinery industries.

Here are some key considerations:

1. Strength and Durability: Forged parts generally have superior strength and durability compared to machined parts due to the alignment of the grain structure during the forging process. This makes forging advantageous for applications requiring high load-bearing capacity or stress resistance.

2. Complexity: While machining can produce complex shapes and intricate features, forging is better suited for simple or moderately complex shapes that require fewer post-processing steps.

3. Cost: Forging generally involves higher setup and tooling costs. However, for large production volumes, forging can be more cost-effective due to reduced material waste and faster production times.

4. Material Properties: Different materials may lend themselves better to machining or forging. Some metals, like certain aluminum alloys, are well-suited for machining, while others, such as steel or titanium, can benefit from forging to enhance their mechanical properties.

In summary, both machining and forging have their advantages and considerations. Machining allows for precise dimensions and intricate features, while forging offers superior strength and durability. The choice between the two depends on the specific requirements of the application, including the desired mechanical properties, complexity of the part, production volume, and cost considerations.

The strength of MIM (Metal Injection Molding) materials can vary depending on the specific metal alloy used and the processing parameters employed during the MIM process. MIM parts typically exhibit excellent mechanical properties, comparable to or even exceeding those of conventionally manufactured metal parts.

MIM parts can achieve high tensile strength, typically ranging from several hundred megapascals (MPa) up to 1,500 MPa or more, depending on the alloy and sintering conditions. For example, stainless steel MIM parts can achieve tensile strength in the range of 500-900 MPa, while some high-performance MIM alloys like titanium or cobalt-chromium can reach even higher strengths.

Similarly, MIM materials can also possess good hardness, typically in the range of 40-60 HRC (Rockwell hardness scale), which indicates resistance to deformation or wear.

It’s important to note that the mechanical properties of MIM parts can be influenced by various factors, including the composition of the metal alloy, powder characteristics, binder formulation, debinding and sintering conditions, and any additional post-processing treatments. Optimization of these parameters is crucial to achieving the desired strength and other mechanical properties in MIM parts.

It’s recommended to consult with MIM material suppliers or conduct specific tests to determine the exact strength of a particular MIM material for a given application, as it can vary depending on the specific alloy and process variables.

Metal Injection Molding (MIM) has a wide range of applications across various industries. Its ability to produce complex shapes, high-precision parts, and excellent surface finish makes it suitable for numerous applications. Some common areas where MIM is used include:

1. Automotive Industry: MIM is utilized in automotive applications such as engine components, transmission parts, fuel system components, braking system parts, and sensors.

2. Medical and Dental: MIM is employed to manufacture surgical instruments, orthodontic brackets, dental implants, drug delivery devices, and other medical and dental components.

3. Electronics and Telecommunications: MIM is utilized in the production of connectors, contacts, housings, antenna components, and other electronic or telecommunications components.

4. Aerospace: MIM finds applications in the aerospace industry for producing components like turbine blades, nozzles, connectors, brackets, and other structural parts.

5. Firearms: MIM is used to manufacture firearm components like triggers, hammers, sears, and other intricate parts.

6. Consumer Goods: MIM is employed in consumer goods such as locks, tools, jewelry, watches, eyeglass frames, and other small precision components.

7. Industrial Machinery: MIM is used in various industrial machinery components, including gears, bearings, actuators, valves, and other critical parts.

8. Defense and Military: MIM finds applications in the defense sector for producing components like weapon systems, ammunition, tactical gear, and munitions.

9. Sports and Recreation: MIM is utilized in sports and recreational equipment, including golf club heads, bicycle components, fishing reels, and more.

These are just a few examples of the many applications of MIM. The process’s versatility, along with its ability to produce parts with complex geometries, tight tolerances, and good mechanical properties, make it an attractive option for diverse industries that require high-quality metal components.

MIM 316L is a stainless steel powder used in Metal Injection Molding (MIM) processes. It is based on the ASTM F138/F139 standard for surgical implant applications. Here are some of the key properties of MIM 316L:

1. Corrosion Resistance: MIM 316L exhibits excellent corrosion resistance, particularly in environments containing corrosive substances such as acids, alkalis, and chloride solutions. This property makes it suitable for applications in industries such as medical, aerospace, and marine.

2. Biocompatibility: MIM 316L is biocompatible, meaning it is compatible with living tissues and can be safely used in medical implants and surgical instruments. It meets the stringent requirements for implantable medical devices, making it a preferred material in the healthcare industry.

3. High Strength: MIM 316L offers good mechanical strength, enabling it to withstand high loads and stresses. This property makes it suitable for applications where structural integrity is critical, such as aerospace components and load-bearing implants.

4. Excellent Ductility: MIM 316L exhibits good ductility, allowing it to be formed into complex shapes without cracking or breaking. This property is important for manufacturing intricate components with thin walls or intricate geometries.

5. Thermal Stability: MIM 316L maintains its mechanical properties at elevated temperatures, providing stability and reliability even in demanding environments.

6. Magnetic Properties: MIM 316L is usually non-magnetic in its annealed or sintered condition. However, depending on the specific processing conditions, it can exhibit some degree of magnetism.

Overall, MIM 316L combines excellent corrosion resistance, biocompatibility, and mechanical properties, making it a versatile material for a wide range of applications, especially in the medical and aerospace industries.

Metal Injection Molding (MIM) is a manufacturing process that combines principles from both plastic injection molding and powder metallurgy to produce complex metal components. It allows for the cost-effective mass production of small to medium-sized parts with intricate shapes and fine details.

The MIM process begins with the formulation of a feedstock, which consists of fine metal powders mixed with a thermoplastic binder material. The metal powders can be various types of metals or alloys, depending on the desired properties of the final component. The mixture is thoroughly blended to ensure even distribution of the metal particles throughout the binder.

Once the feedstock is prepared, it is injected into molds under high pressure, similar to how plastic is injected in traditional injection molding. The feedstock fills the cavity of the mold, replicating the complex features and geometries of the desired part.

After injection, the molded part, called the “green” part, contains a network of metal particles held together by the binder material. To remove the binder and consolidate the metal particles, a debinding process is carried out. This involves subjecting the green part to heat and/or solvents, causing the binder to evaporate or dissolve and leaving behind a porous structure.

The final step in the MIM process is sintering. The debound part is placed in a high-temperature furnace, where it undergoes controlled heating to bond the metal particles together. The sintering process results in the removal of remaining porosity and the formation of a fully dense metal component with the desired mechanical properties.

The advantages of MIM lie in its ability to produce intricate and complex shapes, eliminate the need for secondary operations, and achieve near-net shape manufacturing. It offers high precision, excellent surface finishes, and tight tolerances. Furthermore, MIM can utilize a wide range of metal materials, allowing for the selection of specific properties such as strength, corrosion resistance, or heat resistance.

MIM finds applications in various industries, including automotive, aerospace, electronics, medical, firearms, and consumer goods, where small, complex metal parts are required. The process allows for the cost-effective production of high-quality components with reduced material waste and increased manufacturing efficiency.

MIM stands for Metal Injection Molding. It is a manufacturing process that combines the techniques of plastic injection molding and powder metallurgy to produce complex metal parts. In MIM, fine metal powders are mixed with a thermoplastic binder material to form a feedstock. This feedstock is then injected into a mold cavity, where it solidifies and takes the shape of the desired part. Afterward, the molded part undergoes a debinding process to remove the binder, followed by a sintering process to densify the metal particles and give the final part its desired mechanical properties.

MIM materials can be made from a wide range of metals, including stainless steel, low-alloy steels, tool steels, copper alloys, and titanium alloys. The process allows for the creation of intricate shapes with high precision and excellent surface finish, making it suitable for applications in various industries such as automotive, medical, electronics, telecommunications, and consumer goods.

The advantages of using MIM materials include cost-effectiveness for mass production, design flexibility, reduced machining requirements, and the ability to create complex geometries that would typically be challenging or impossible using conventional metalworking methods. Additionally, MIM allows for the incorporation of multiple features into a single part, eliminating the need for assembly processes and reducing overall production time.

MIM (Metal Injection Molding) and CNC (Computer Numerical Control) are two different manufacturing processes used to produce metal parts, each with its own strengths and applications.

MIM, as mentioned before, involves mixing fine metal powders with a thermoplastic binder, injecting the feedstock into a mold, debinding the part, and then sintering it to achieve its final properties. MIM is well-suited for producing complex geometries, small to medium-sized parts, and large quantities of parts. It offers high accuracy and can create intricate designs that would be difficult or costly to achieve through conventional machining methods like CNC.

CNC machining, on the other hand, involves using computer-controlled machine tools to remove material from a solid block or bar of metal to create the desired shape. CNC machines can precisely cut, drill, mill, and shape various types of metals and other materials. CNC machining is ideal for producing parts with tight tolerances, custom designs, and low to medium production quantities. It allows for flexibility in design changes and produces parts with excellent surface finishes.

While both MIM and CNC can produce metal parts, they are suited for different scenarios. MIM is more cost-effective for high-volume production runs, especially when complex geometries are required. CNC machining is better suited for low to medium volume production, prototyping, and parts that require high precision, tight tolerances, or customization. CNC also allows for quicker design iterations and modifications, whereas MIM may have longer lead times due to mold fabrication.

In summary, MIM is a suitable choice for complex parts with high volume production requirements, while CNC machining is preferred for smaller quantities, highly customized parts, and rapid prototyping.

The main difference between casting and MIM (Metal Injection Molding) lies in the manufacturing processes used to produce parts.

Casting involves pouring molten metal into a mold, allowing it to solidify, and then removing the part from the mold once it has cooled. There are various casting methods such as sand casting, investment casting, die casting, and more. Cast parts are typically produced in larger sizes and can be made from a wide range of metals, including steel, aluminum, brass, and others. Casting offers good design flexibility, cost-effectiveness for large volumes, and the ability to create complex shapes with internal features.

On the other hand, MIM combines the principles of plastic injection molding and powder metallurgy. In MIM, fine metal powders are mixed with a thermoplastic binder, which is then injected into a mold cavity. After solidification, the part undergoes a debinding process to remove the binder, followed by sintering to densify the metal particles. MIM is well-suited for producing small to medium-sized parts with complex shapes and tight tolerances. It offers high precision, excellent surface finish, and the ability to incorporate multiple features into a single part.

Here are a few key differences between casting and MIM:

1. Complexity: MIM allows for the production of intricate geometries and complex internal features that would be challenging to achieve with casting.

2. Size: Castings are typically used for larger parts, while MIM is more suitable for smaller to medium-sized parts.

3. Tolerance and Dimensional Accuracy: MIM offers higher precision and tighter tolerances compared to most casting methods.

4. Material Selection: Casting allows for a wide range of metals, including both ferrous and non-ferrous metals, whereas MIM is generally limited to metals suitable for powder metallurgy, such as stainless steel, low-alloy steels, copper alloys, and titanium alloys.

5. Cost: Casting is often more cost-effective for large production volumes due to lower tooling costs, while MIM can be more economical for smaller production runs or when complex geometries are involved.

In summary, casting is suitable for larger parts and offers more material options, while MIM excels in producing intricate, smaller parts with high precision and complex geometries. The choice between casting and MIM depends on factors such as part size, complexity, tolerances, material requirements, and production volume.

Yes, aluminum can be used in the Metal Injection Molding (MIM) process. While MIM is commonly associated with metals like stainless steel, low-alloy steels, copper alloys, and titanium alloys, aluminum can also be utilized, albeit with some considerations.

Aluminum MIM feedstock typically involves mixing fine aluminum powders with a suitable thermoplastic binder. The challenge with aluminum MIM lies in its high affinity for oxygen, which can lead to oxide formation and porosity during sintering. Therefore, extra precautions and process adjustments are necessary to produce sound aluminum MIM parts.

To mitigate the oxygen-related issues, specialized atmospheres or vacuum conditions may be employed during the debinding and sintering processes. Additionally, the selection of aluminum powders with suitable characteristics, such as controlled particle sizes and low oxide content, is crucial.

Aluminum MIM parts can offer several advantages, including reduced weight, good thermal conductivity, corrosion resistance, and the ability to achieve complex geometries and intricate features. These attributes make aluminum MIM suitable for a variety of applications, such as electronics, aerospace, automotive, and consumer goods industries.

It’s worth noting that while aluminum MIM is an option, it is not as commonly utilized as other metals in the MIM process due to the challenges associated with its high reactivity.

In Metal Injection Molding (MIM), part density refers to the degree of densification achieved in the final sintered part. Part density is an important factor as it influences various properties of the MIM part, including mechanical strength, dimensional stability, and surface finish.

The density of a sintered MIM part is typically expressed as a percentage of its theoretical density, which represents the density the part would achieve if it were solid throughout without any voids or porosity. The theoretical density varies depending on the specific metal alloy used in the MIM process.

In general, MIM parts can achieve high densities, often ranging from 95% to 99% of theoretical density or higher. The achievable density depends on various factors, including the composition of the metal alloy, powder characteristics, binder formulation, debinding process, sintering conditions, and any additional post-processing treatments.

To achieve high part densities, it is crucial to optimize the MIM process parameters, such as debinding time and temperature, sintering temperature and duration, and atmosphere or furnace conditions. The goal is to promote the removal of the binder material while allowing the metal particles to fuse together and achieve maximum densification during sintering.

Controlling and maximizing part density is essential for achieving the desired mechanical properties and ensuring the integrity and performance of MIM parts. It is important to note that achieving higher densities may require longer processing times or different process optimizations, and there might be trade-offs between density and other factors such as shrinkage, warpage, or dimensional accuracy.

Yes, stainless steel can be injection molded using a process known as metal injection molding (MIM). MIM is a manufacturing technique that combines the advantages of plastic injection molding and powder metallurgy to produce complex-shaped metal parts.

In the MIM process, fine metal powders, such as stainless steel, are mixed with a binder material to form a feedstock. This feedstock is then injected into a mold cavity, similar to how plastic is injected in plastic injection molding. After injection, the molded part is subjected to a debinding process to remove the binder, and then sintered to achieve full density and desired mechanical properties.

Stainless steel is a popular choice for MIM due to its excellent corrosion resistance, high strength, and thermal stability. It is widely used in various industries, including automotive, aerospace, medical, and consumer goods. MIM allows for the production of intricate, net-shaped stainless steel components with tight tolerances, making it a cost-effective and efficient alternative to traditional machining methods.
