MIM Tolerances
Quick Answer: MIM tolerances describe the dimensional accuracy that metal injection molding can deliver on a finished part. As-sintered MIM typically achieves ±0.3% to ±0.5% of nominal dimension, which equals about ±0.025 mm on features below 3 mm and up to ±0.102 mm near 25 mm. Tighter requirements are reached with CNC secondary operations, where post-machining tolerances of ±0.01 mm are practical. Final accuracy depends on material shrinkage, mold compensation, part geometry, sintering control, and inspection methods.

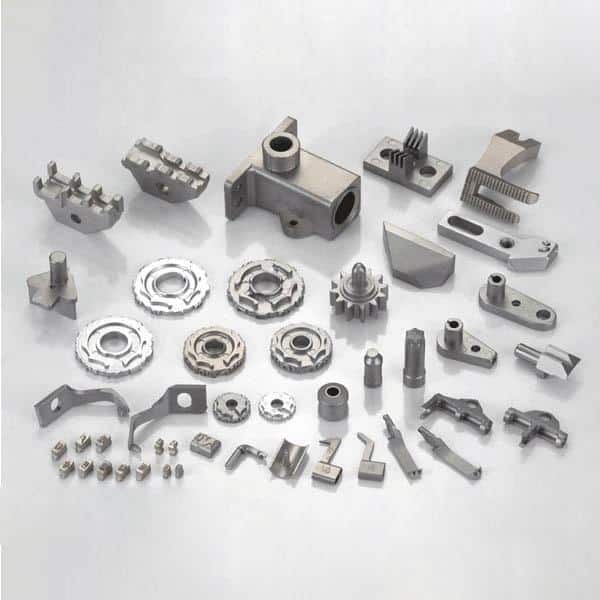

What Are MIM Tolerances?
Metal injection molding (MIM) is a net-shape process that combines plastic injection molding with powder metallurgy. A metal-powder feedstock is injected into a precision mold, debound, and sintered at high temperature. During sintering the part shrinks roughly 15–20% by volume, and the mold cavity is scaled in advance to compensate.
MIM tolerances express how closely final sintered dimensions match design intent. Because the entire part shrinks together, MIM preserves relative feature positions and complex shapes well. Absolute dimensions are influenced by material shrinkage, mold wear, furnace uniformity, and geometry. The MIM process, mold design, alloy, and sintering profile together determine the tolerance band that can be held repeatably.
MIM Tolerance by Dimension Range
MIM tolerances use absolute values for small features and percentages for larger dimensions. The table below shows typical as-sintered capability and the tighter values possible after post-machining.
| Dimension Range | Typical As-Sintered Tolerance | Achievable with Post-Machining | Notes |
|---|---|---|---|
| < 3.05 mm | ±0.025 mm | ±0.005 mm | Small holes, bosses, thin ribs |
| 3.05 – 6.1 mm | ±0.051 mm | ±0.010 mm | Typical for miniature components |
| 6.1 – 12.0 mm | ±0.051 mm | ±0.010 mm | Electronics and medical parts |
| 12.0 – 25.0 mm | ±0.102 mm | ±0.020 mm | Industrial and automotive parts |
| 25.0 – 50.0 mm | ±0.125 mm | ±0.025 mm | Larger MIM parts |
| > 50 mm | ±0.3% of dimension | ±0.050 mm | Percentage-based tolerance applies |
For secondary machined features, Emitech references ISO 2768-m as the default general-tolerance standard. Fine-tolerance features can be held to ISO 2768-f or specific IT grades after machining.
As-Sintered vs Post-Machining Tolerance
A key decision in every MIM project is whether to rely on as-sintered accuracy or add a secondary machining operation. As-sintered MIM offers the lowest piece price and fastest throughput, but functional surfaces sometimes need tighter control.
| Feature / Requirement | As-Sintered MIM | Post-Machining (CNC) |
|---|---|---|
| Linear dimensions | ±0.3% – ±0.5% | ±0.01 mm on critical surfaces |
| Hole diameter | ±0.04% of diameter | ±0.005 mm |
| Flatness | 0.1% – 0.2% | 0.02 mm or better |
| Surface roughness (Ra) | 0.8 – 1.6 μm | 0.4 μm or finer |
| Threads / gears | Not directly achievable | Full profile control |
| Relative cost | Lower per part | Higher; offset by reduced risk |
| Lead time impact | Fastest | Adds 2–5 days |
Combining MIM with CNC machining is common for custom MIM parts. Molding produces a near-net-shape blank, and machining refines only the surfaces that need tight tolerances or fine finishes.
Geometric Tolerances in MIM
Beyond linear dimensions, engineers often need geometric tolerances. MIM can hold many of these after sintering, although very tight callouts may require machining or careful datum selection.
| Geometric Characteristic | Typical As-Sintered Capability | Post-Machining Reference |
|---|---|---|
| Flatness | 0.1% – 0.2% of dimension | 0.02 mm |
| Parallelism | 0.2% | 0.01 – 0.02 mm |
| Perpendicularity | 0.1% or 0.1° | 0.05 mm or tighter |
| Roundness | 0.3% | 0.01 mm |
| Concentricity | 0.2% – 0.3% | 0.02 mm |
| Hole location | 0.1% – 0.3% | ±0.010 mm |
| Hole diameter | 0.04% of diameter | ±0.005 mm |
Tight geometric controls should be applied selectively. Mating surfaces, sealing faces, and assembly datums are the best places for tighter callouts; cosmetic or non-functional surfaces add inspection cost without improving performance.
Factors That Affect MIM Tolerances
Several variables determine the final tolerance band. Controlling them during development and production is how Emitech keeps MIM tolerances stable from first article through full production.
- Material shrinkage: Each alloy shrinks differently. MIM materials such as 316L, 17-4 PH, low-alloy steels, and titanium require alloy-specific mold scaling.
- Part geometry: Thick sections shrink differently from thin walls. MIM design guidelines recommend uniform wall thickness to avoid distortion.
- Gate location and flow: Injection filling patterns affect density distribution and can create localized dimensional variation.
- Sintering profile: Temperature, atmosphere, and time determine final density and dimensions. A stable furnace profile reduces batch-to-batch variation.
- Tooling wear: Mold cavities change slightly over many shots. Proper tool steel and maintenance schedules keep dimensions stable.
- Process control: Statistical monitoring and regular CMM sampling catch drift before it affects production lots.
ISO 2768 and Industry Tolerance Standards
MIM is not defined by a single global tolerance standard, but it is commonly compared against ISO 2768. At Emitech, we use ISO 2768-m as the default reference for features machined after sintering. As-sintered features use percentage-based tolerances because their variation scales with shrinkage.
For precision beyond ISO 2768-m, we apply GD&T with datum structures that match the inspection setup. First-article inspection reports, process-capability studies, and CMM data confirm that tolerance requirements are met before mass production. Details are available on our quality inspection page.
When to Add CNC Secondary Operations
Secondary machining should be considered whenever a feature exceeds the as-sintered tolerance window or requires a surface finish that sintering cannot deliver. Common reasons include:
- Precision holes, reamed bores, or press-fit diameters
- Threads that must meet class-of-fit standards
- Flat sealing faces or perpendicular mounting surfaces
- Gear profiles, splines, or cam contours
- Tight concentricity between internal and external diameters
Because MIM produces a near-net-shape blank, machining stock is small. This reduces cycle time and material waste compared with machining from solid stock, making MIM plus CNC a cost-effective route for complex, tight-tolerance metal components.
MIM Tolerance Design Guidelines
Designing for MIM tolerances starts early. Following a few DFM rules helps keep tolerances achievable without driving up tooling or processing costs.
- Keep wall thickness uniform: Recommended range is 0.5–3 mm, with 0.3 mm possible in specialized cases.
- Use generous radii: Internal corners should have a minimum radius of 0.2 mm to reduce stress concentration and improve flow.
- Apply draft angles: A draft of 0.5–2° aids ejection and reduces tooling wear.
- Avoid deep, thin ribs: These can warp during sintering and are difficult to hold to tight tolerances.
- Datum consistency: Design datums should align with sintering, machining, and inspection setups.
- Tolerance only what matters: Tight controls on non-functional surfaces add inspection burden without benefit.
Our engineering team reviews every design for manufacturability and tolerance feasibility. If a requirement is outside the normal MIM window, we recommend a secondary machining step or a design adjustment before tooling begins.
Frequently Asked Questions
What tolerance can MIM hold as-sintered?
As-sintered MIM typically holds ±0.3% to ±0.5% of nominal dimension. In absolute terms this is roughly ±0.025 mm for very small features and up to ±0.102 mm for dimensions around 25 mm.
Can MIM achieve tighter tolerances?
Yes. Post-machining operations such as CNC milling, turning, grinding, or reaming can reach linear tolerances of ±0.01 mm and hole tolerances of ±0.005 mm.
How does part size affect MIM tolerances?
Because shrinkage is proportional, larger dimensions accumulate more absolute variation. Tolerances are therefore expressed as a percentage for parts over 50 mm and as absolute values for small features.
What is ISO 2768 and how does it apply to MIM?
ISO 2768 is a general-tolerance standard for machined parts. Emitech uses ISO 2768-m for features machined after sintering. As-sintered MIM features use percentage-based tolerances based on sintering shrinkage.
Which geometric tolerances can MIM hold?
MIM can hold flatness, parallelism, perpendicularity, roundness, concentricity, and hole-location tolerances within percentage-based bands. Very tight geometric callouts usually require machining on selected datums.
Do different materials affect MIM tolerances?
Yes. Each alloy has a different shrinkage factor and sintering response. Stainless steels, low-alloy steels, and titanium each require mold-cavity compensation specific to that material.
Will MIM tolerances vary from batch to batch?
Variation can be minimized through controlled feedstock, stable sintering profiles, and statistical process monitoring. Emitech uses CMM inspection and process-capability studies to keep batches within specification.
When should I choose post-machining for a MIM part?
Post-machining is recommended for threads, precision holes, flat sealing faces, gear profiles, and any feature where the as-sintered tolerance band is too wide.
How does wall thickness affect MIM tolerances?
Non-uniform wall thickness causes differential shrinkage and can lead to warping. Keeping walls uniform and within the recommended range improves dimensional stability.
How can I request a MIM tolerance review?
Send your drawing or 3D model to Emitech. Our engineers will review feature sizes, tolerances, material, and geometry, then recommend an as-sintered or MIM-plus-CNC strategy.
Request a MIM Tolerance Review
