Mixing and Kneading of MIM Raw Materials: The Core of Technology and the Guarantee of Product Quality

In the field of Metal Injection Molding (MIM), the mixing and kneading of raw materials are key steps in manufacturing high-quality, precision, and complex parts. By delving into this process, we gain a better grasp of the essence of MIM technology and ensure the quality and consistency of the final products.

Kneading Granulation Technology: Ensuring Uniformity and Density

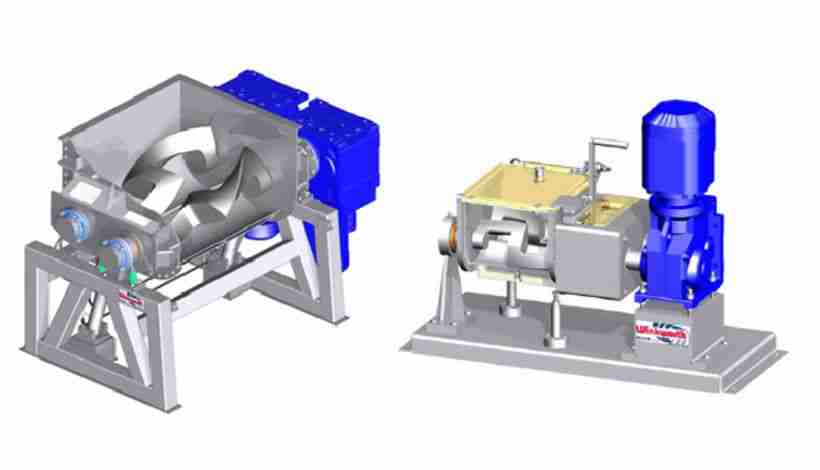

The first step in the MIM process involves the kneading granulation of metal powder with binders like resin. This step is performed using efficient mixing equipment, such as kneaders, to uniformly blend these materials into a semi-solid paste. Subsequently, this paste is transformed into granular material through a precise granulation process. This process not only ensures material uniformity but also plays a decisive role in the density and consistency of the molded products.

Key Stages in the Production Process

  1. Material Preparation: The selection of appropriate metal powder and binders is crucial as it directly affects the performance of the subsequent mixture. A high content of metal powder helps control the shrinkage rate during sintering, thereby improving the dimensional accuracy of the workpieces.
  2. Mixing Stage: The mixing process in the kneader must ensure an even distribution of powder and binder to avoid agglomeration, which is vital for smooth product injection. An effective mixing process also enhances the bonding strength between the powder and binder, preventing potential powder-binder separation.
  3. Granulation Stage: At this stage, the semi-solid paste is converted into granular material. Reasonable granulation process parameters and technical measures enhance the compactness and uniformity of the molded products, ensuring uniformity in the shape, size, and distribution of the granules, which is crucial for the subsequent injection molding process.

The Importance of Kneading Granulation

Kneading granulation is not just a technical process; it’s a critical quality control step. Only through strict process parameter control and quality monitoring can we ensure high-quality kneaded materials, leading to superior injection results. The importance of this process lies in:

  • Ensuring Batch-to-Batch Consistency: The key to successful MIM production is achieving absolute consistency between batches. Any minor deviation might cause defects in molding or deformation during sintering.
  • Adaptability and Customization: Depending on the product requirements, the mixing and granulation process of MIM raw materials can be customized. This adaptability allows the MIM process to meet the precise needs of specific customers.
  • Achieving High Theoretical Density: Compared to standard powder metallurgy, MIM can achieve a higher theoretical density. This means tighter tolerances can be achieved, reducing the cost of producing small, complex parts.

Conclusion

The mixing and kneading of MIM raw materials are foundational to the entire MIM process and their importance cannot be overstated. By precisely controlling each step, from material preparation to mixing, and then to granulation, we not only ensure the uniformity and density of the materials but also lay a solid foundation for producing high-quality, high-precision MIM products. It is this attention to detail and commitment to quality that makes MIM technology irreplaceable in the field of precision manufacturing.

The meticulous approach in each stage, from selecting the right raw materials to the final granulation, plays a critical role in ensuring the overall quality of the MIM products. This process is not just about mixing and combining materials; it’s about creating a blend that meets specific standards and requirements for each unique application. The result is a product that exhibits excellent properties, such as uniform density, precise dimensions, and high performance – attributes that are essential in industries where precision is paramount.
In conclusion, the mixing and kneading process in MIM is more than just a step in manufacturing; it’s a commitment to quality and precision. By understanding and mastering this process, we uphold the standards of excellence in MIM technology, ensuring that each product we produce meets the high expectations of our clients and the demands of the industry. This commitment to quality is what sets MIM apart and continues to drive its success in the realm of precision manufacturing.
